RD903 Solid material radar level meter

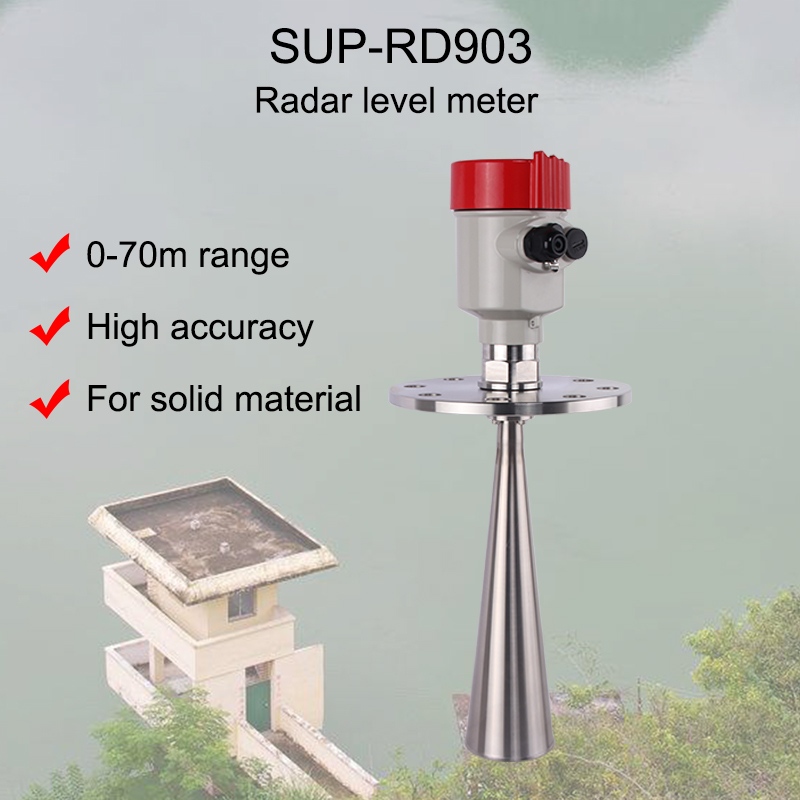

RD903 Solid material radar level meter with high frequency, measurement of solid material, strong dust, easy to crystallize, condensation occasion


Specification



 Product Radar level meter
 Model SUP-RD903
 Measure range 0-70 meters
 Application Solid material, strong dust, easy to crystallize, condensation occasion
 Process Connection Thread, Flange
 Medium Temperature -40℃~250℃
 Process Pressure -0.1 ~ 0.3 MPa (universal flange); -0.1~4.0 MPa (flat flange)
 Accuracy ±15mm
 Protection Grade IP67
 Frequency Range 26GHz
 Signal Output 4-20mA (Two-wire/Four)
RS485/Modbus
 Power supply 2-wire(DC24V)/ 4-wire(DC24V /AC220V)

Introduction

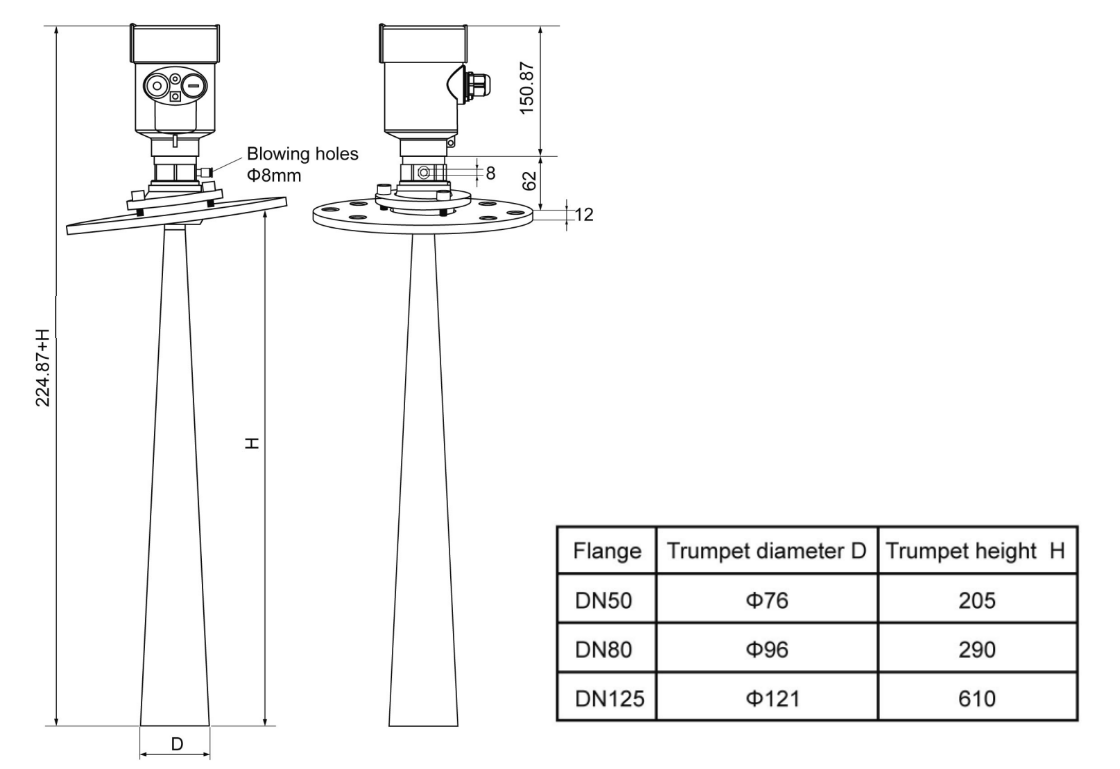

Product Size






Installation guide

level meter level meter level meter
Be installed in the diameter of the 1/4 or 1/6.

Note: The minimum distance from the tank

wall should be 200mm.

Note:  ① datum

②The container center or axis of symmetry

The top conical tank level, can be installed at

the top of the tank is intermediate, can guarantee

the measurement to the conical bottom

 A feed antenna to the vertical alignment surface.

If the surface is rough, stack angle must be used

to adjust the angle of cardan flange of the antenna

to the alignment surface.

(Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.)
