PH Sensor Electrode

high temperature glass electrode used in PH measurement is also called primary cell. The primary battery is a system whose function is to convert chemical energy into electrical energy. The voltage of this battery is called electromotive force (EMF). This electromotive force (EMF) consists of two half-cells.


Specification

  Product    Plastic pH sensor
  Model   SUP-PH5050
  Measurement range   0-14 pH
  Zero potential point   7 ± 0.5 pH
  Slope   > 96%
  Internal impedance   150-250 MΩ(25℃)
  Practical response time   < 1 min
  Installation size   PG13.5 Pipe Thread
  NTC   10 KΩ/2.252KΩ/Pt100/Pt1000
  Heat resistance   0-120℃ for general cables
  Pressure resistance   1 ~ 6 Bar
  Connection   Low-noise cable

Introduction

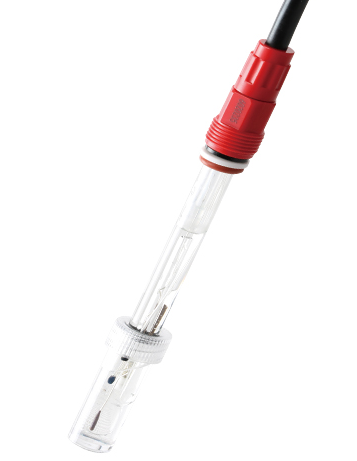

high temperature glass ph sensor.png

Application

Industrial wastewater engineering
Process measurements, electroplating plants, paper industry, drinks industry
Wastewater containing oil
Suspensions, varnishes, media containing solid particles
Two-chamber system for when electrode poisons are present
Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF
