MIK-PTU200 Turbidity meter

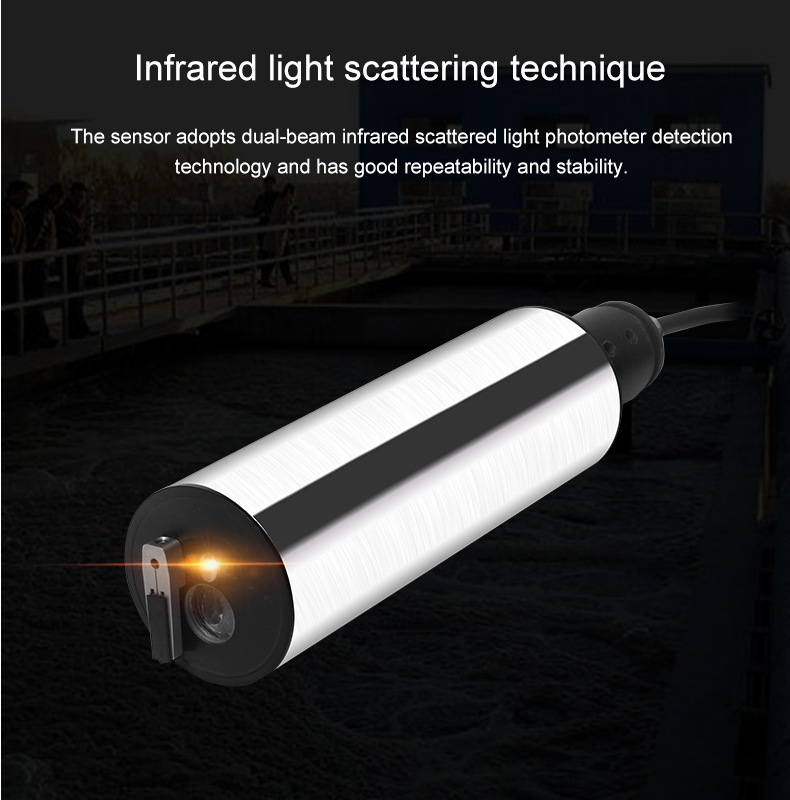

MIK-PTU200 turbidity meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.


  • Specification

 Product Turbidity meter
  Model MIK-PTU200
 Display 128 * 64 dot matrix LCD with LED backlight,
which can be operated under the direct sunlight
 Power supply AC:AC220V, 50Hz, 5W;  DC:DC24V
 Output Three-way analog output 4-20mA,
Note: the maximum load is 500 ohms
 Relay Three-way relay can be set up
 Digital
communication
MODBUS RS485 communication function,
which can transmit real-time measurements
 Warranty period 1 year
 Material of
outside shell
Lower casing:Aluminum with powder covering
cover:PA66+GF25+FR
 Ingress protection IP65
 Size 145*125*162mm  L*W*H
 Weight 1.3KG



  • Introduction

MIK-PTU200 Turbidity Analyzer based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.

turbidity meter

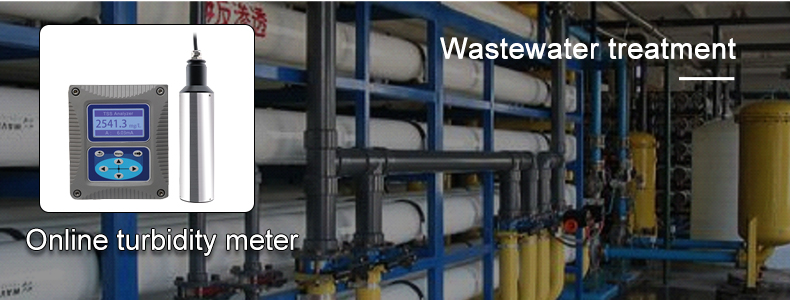

  • Application

turbidity meter

turbidity meter

turbidity meter



  • Description

industrial turbidity meter

turbidity meter

turbidity meter

turbidity meter
