MIK-DM3000 Electrochemical dissolved oxygen meter

MIK-DM3000 Membrane type dissolved oxygen is the measure of oxygen dissolved in an aqueous solution. Polarographic measurement principle, the dissolution value depends on the temperature of the aqueous solution, pressure and salinity in solution. The meter uses a liquid crystal display for measuring and displaying DO and medium temperature values, with analog and digital signal outputs and control functions.

  • Specification

  Product Dissolved Oxygen meter(Electrochemical type)
  Model SUP-DM3000
  Measure range 0-40mg/L,0-130%
  Accuracy ±0.5%FS
 Temperature accuracy 0.5℃
 Output Type 1 4-20mA output
 Max.loop resistance 750Ω
 Repeatblitiy ±0.5%FS
 Output Type 2 RS485 digital signal output
 Communication protocol Standard MODBUS-RTU(customizable)
 Power supply AC220V±10%, 5W Max, 50Hz
 Alarm relay AC250V,3A


  • Introduction

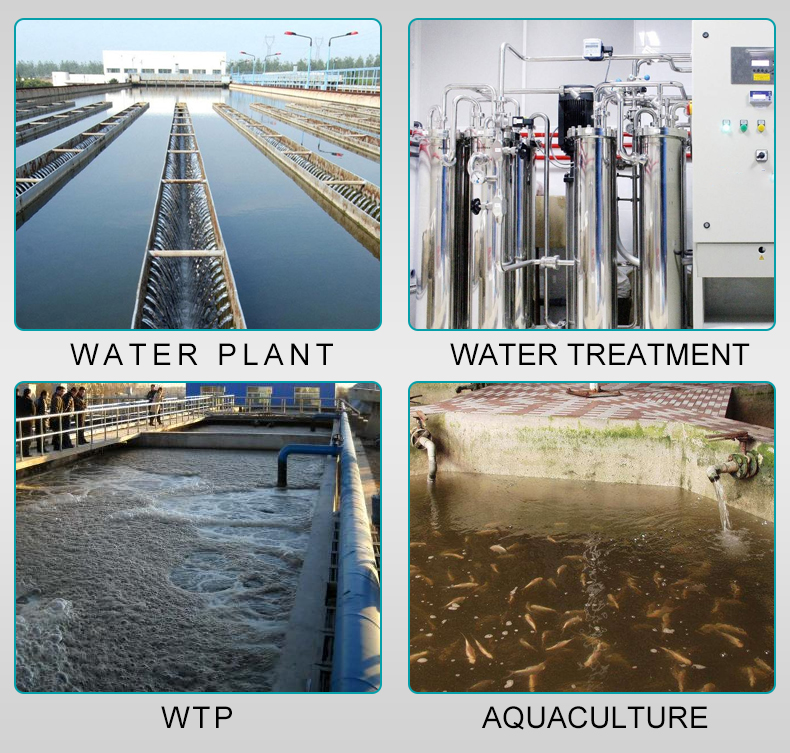

  • Application

do sensor and meters
