Industrial PH Meter

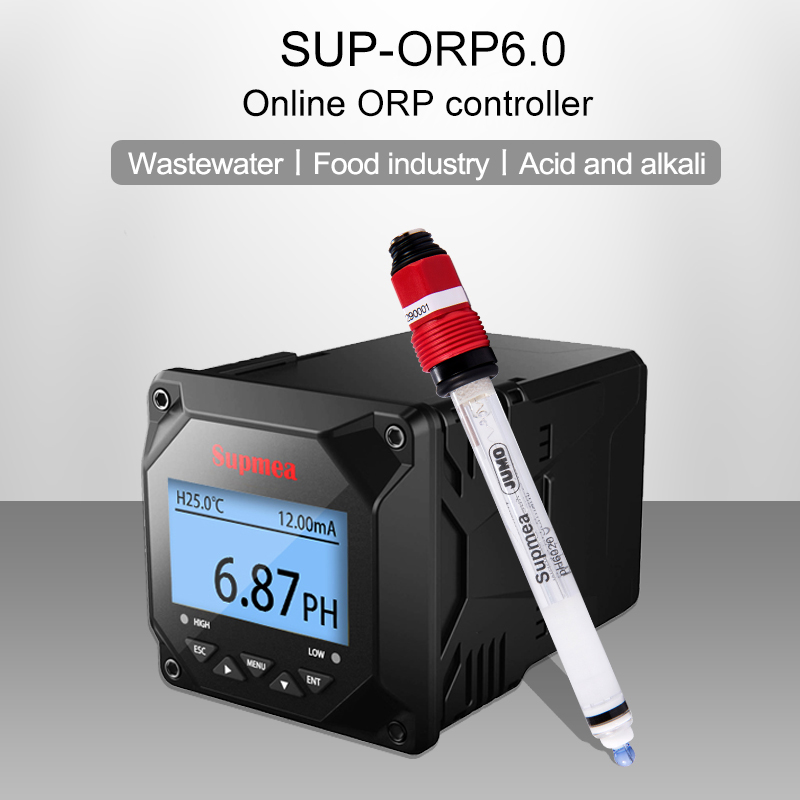

Industrial ORP meter Intelligent industrial ORP monitor is used for continuous measurement of sewage and ORP/redox value control.


Specification

  Product  ORP meter controller, Redox monitor
  Model  SUP-ORP6.0
  Measure range ORP: -1000 ~1000mV, ±1mV
  Measuring medium  Liquid
  Input Resistance  ≥1012Ω
  Temp compensation  Manual/ Auto temperature compensation
  Temperature Range  -10~130℃, NTC10K or PT1000
  Communication  RS485, Modbus-RTU
  Signal output  4-20mA, maximum loop 750Ω, 0.2%FS
  Power supply  220V±10%,24V±20%,50Hz/60Hz
  Relay output  250V, 3A

Introduction

SUP-ORP6.0 Industrial online ORP meter controller is a multivariable analyzer used for measuring/controlling the ORP with different temperature. The function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. ORP sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.

online orp meter

Features

Automatically Temperature Compensation

Directly switchable to ORP or pH

Large LCD display with background lighting

pH or ORP sensors can be connected thanks to the sensor supply integrated in the output

Using the setup program: user-friendly programming

4-20mA analog output

RS485 communication

Relay output

Application

pH meter application

Description

Supmea sixth-generation liquid analyzer with 20 years of experience accumulated.

ph meter controller

online ph meter

Professional Industrial Design Team design the product appearance!

supmea ph controller



Choose pH electrode

Offers a full range of ORP electrodes for measuring different media. Such as sewage, pure water, drinking water etc.

Supmea pH meter sensor

ph sensor
